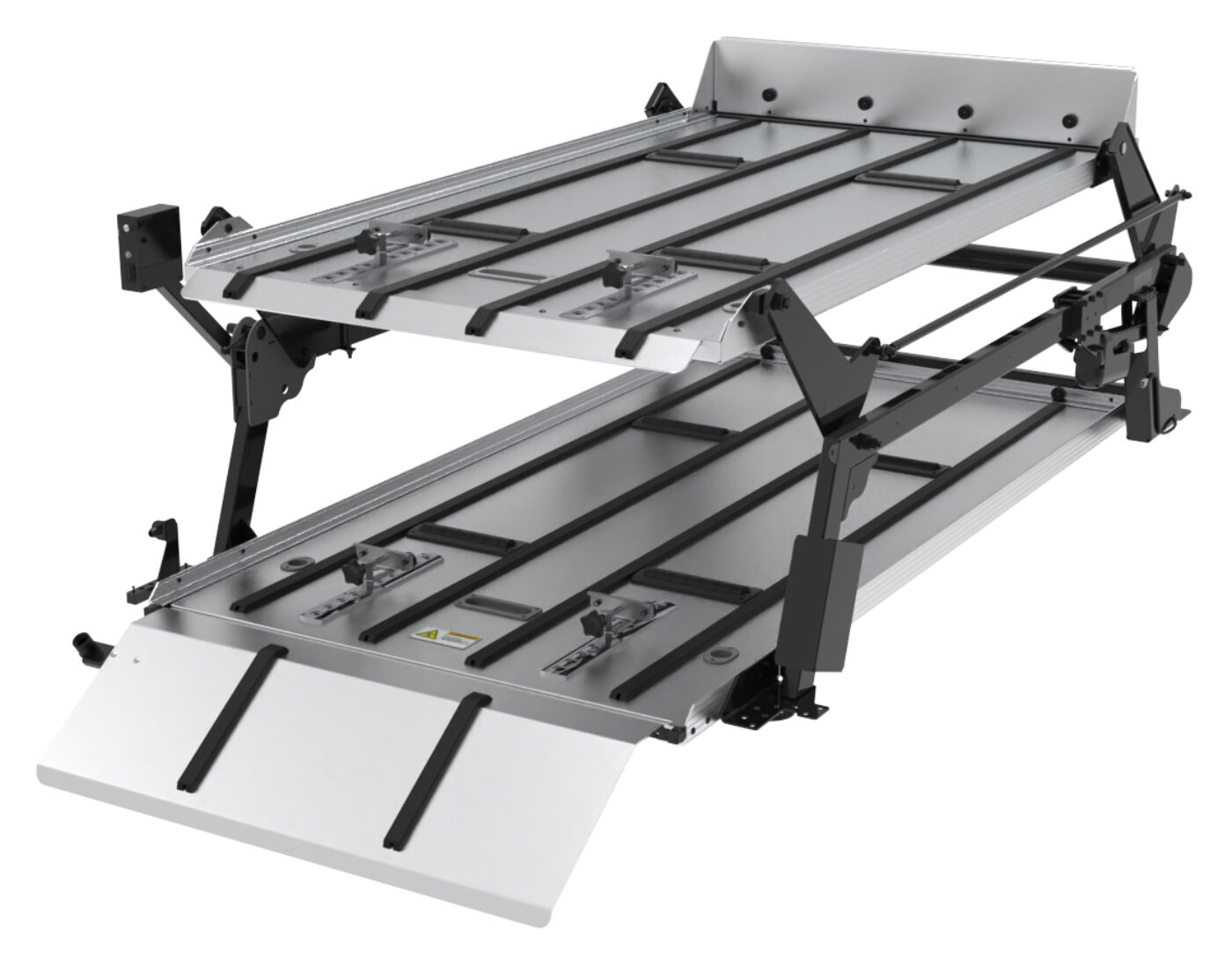

Double Carrying Capacity

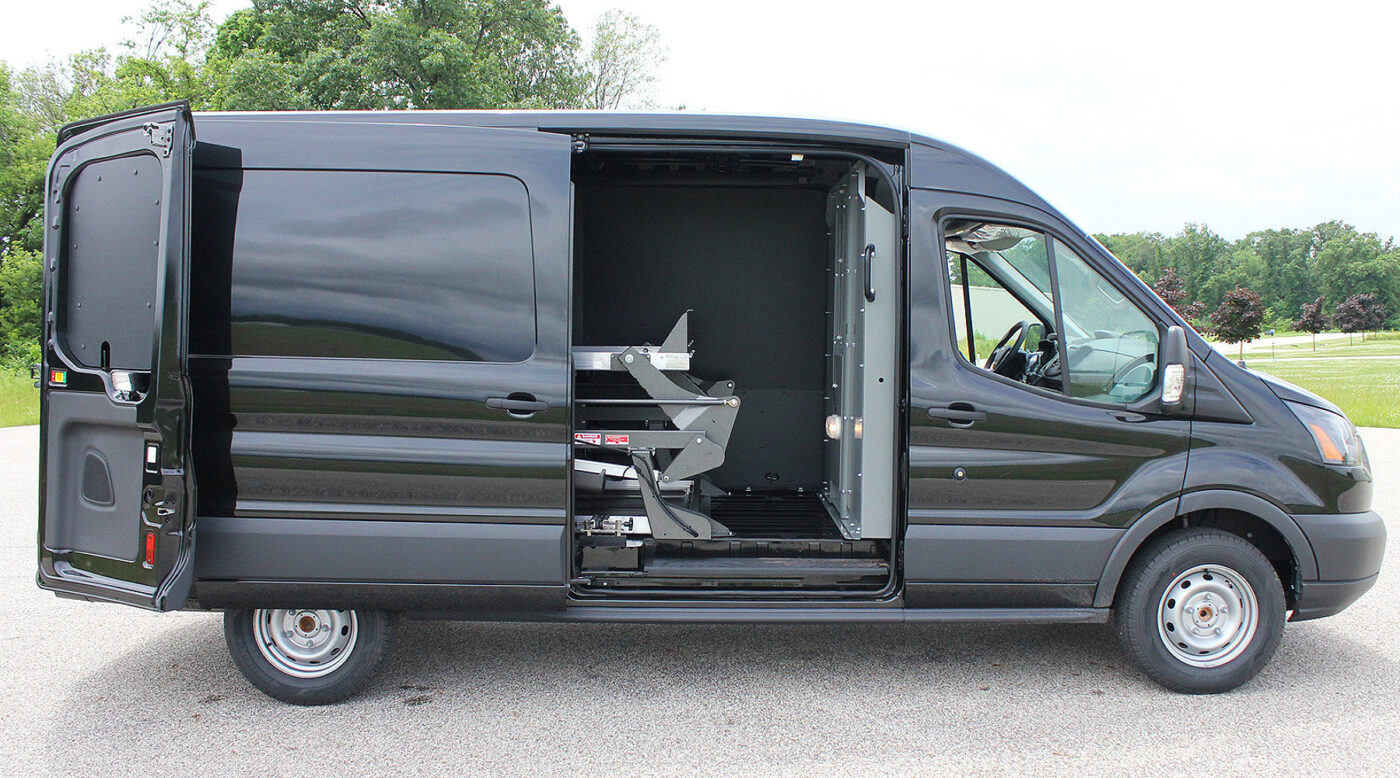

The DD2000-XLC fits in most full-size cargo vans. The engineered double deck system incorporates the capability to secure a standard and oversized cot side-by-side. The system allows four cremation containers, four cots, two air trays, or two caskets to be transported safely by one person.

The powered upper deck with safety latch raises and lowers within seconds, allowing for easy loading and transport. Four interchangeable and adjustable bier pins allow the management of different casket sizes on both decks for nearly any job. Recessed cot cups allow for the safe securing of stretchers and casket rollers improves the handling of large cremation containers.

Robust features like an aluminum deck surface, high-impact bumper ramp, and engineered deck frame help create the most reliable and durable deck system in the industry.

Features

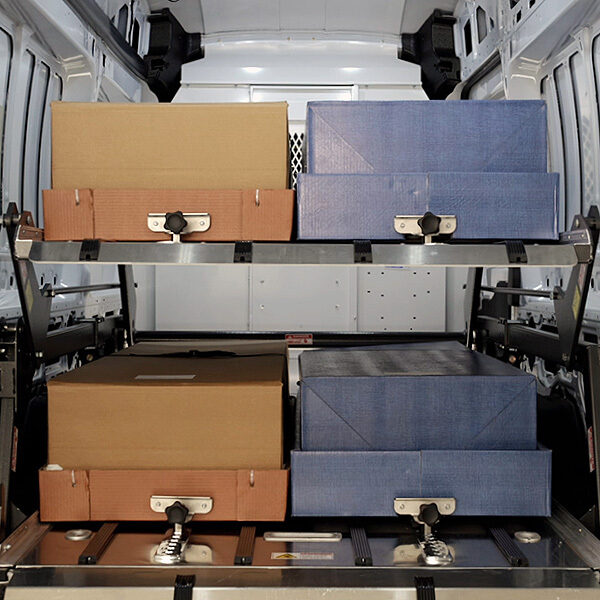

  • 4 cremation containers on DD2000-XLC Double Deck

    Increase Transporting Capabilities

    Increases the overall capacity of cargo vans by allowing for the transportation of either four stretchers, four cremation containers or two caskets.

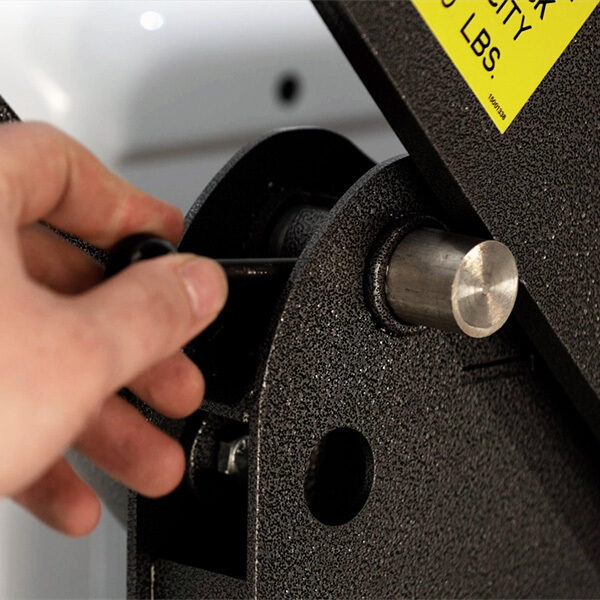

  • Person deploying the safety latch on DD2000-XLC

    Upper Deck Safety Latch

    The upper deck safety latch prevents the deck from dropping if both powered actuators fail. The upper deck has a maximum weight capacity of 600 lbs.

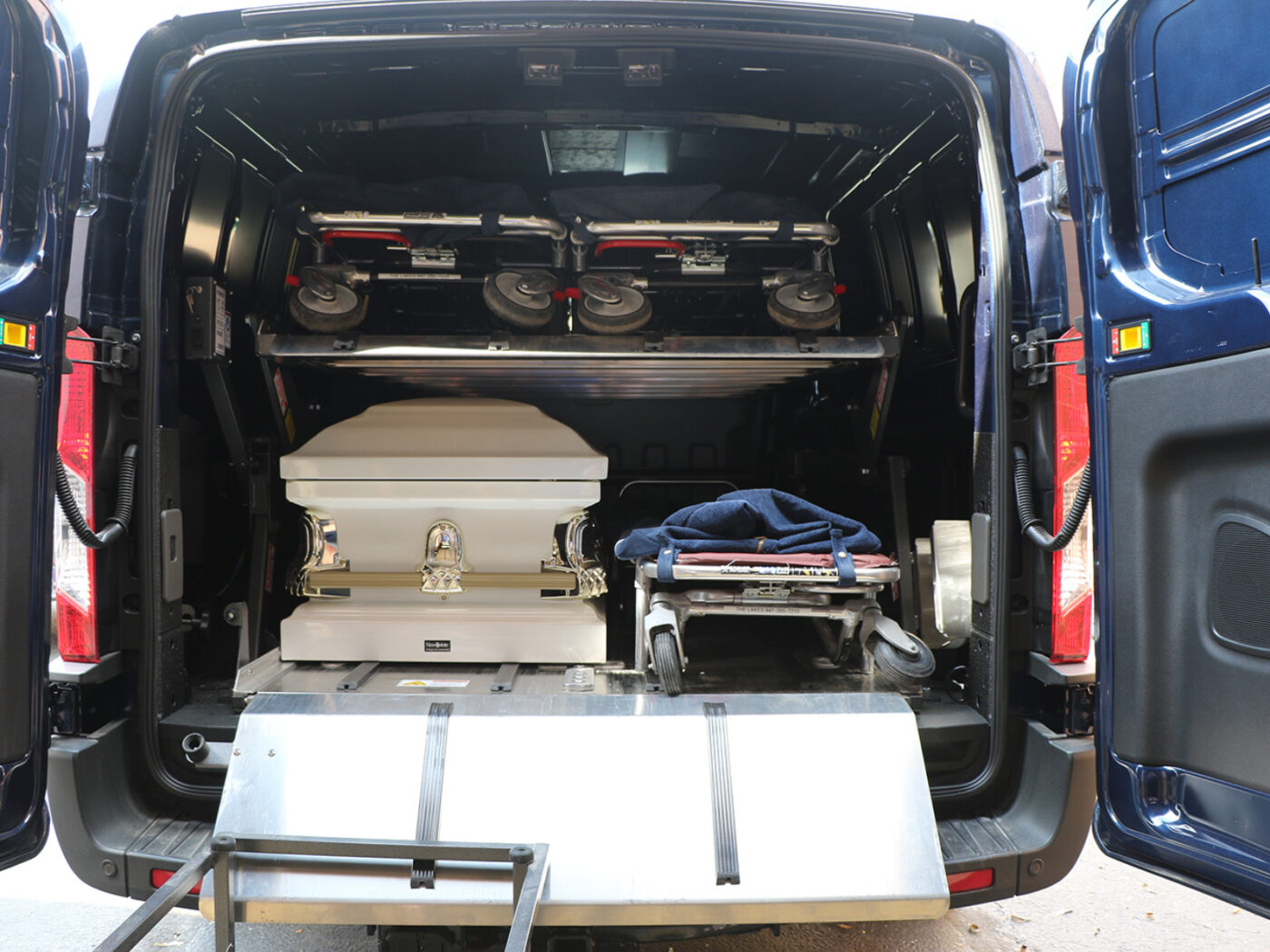

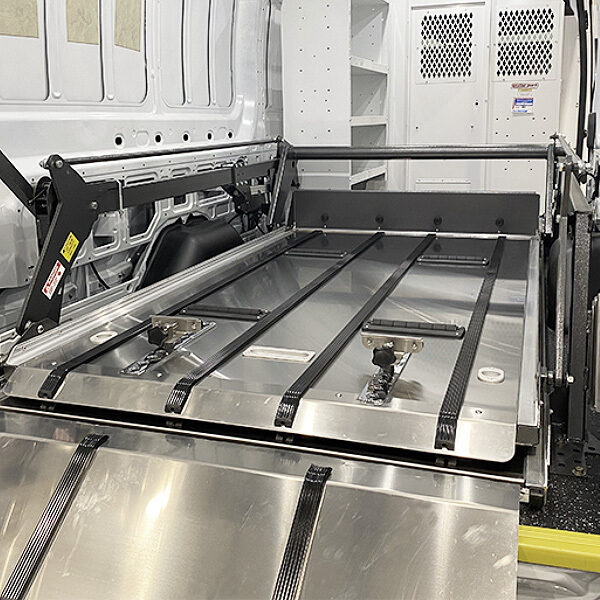

  • DD2000-XLC with upper deck lowered

    Powered Upper Deck

    The upper deck raises and lowers within seconds, allowing one person to easily load and transport cots, caskets, or air trays.

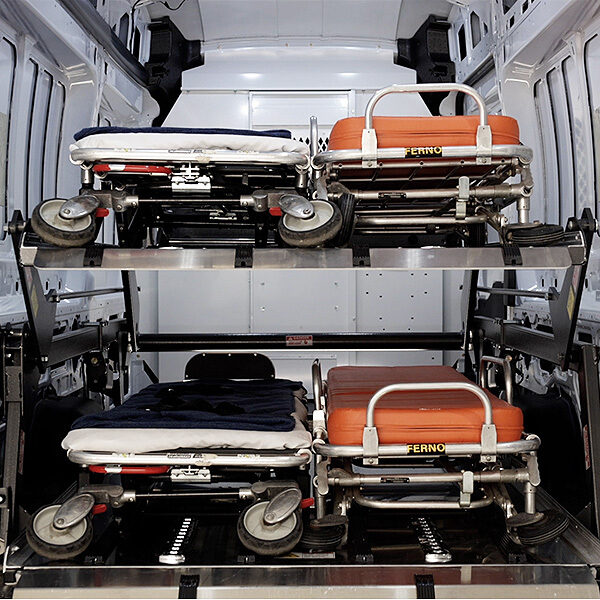

  • Oversized cot side-by-side with standard cot on each level of the DD2000-XLC

    Fits Standard and Oversized Cots

    The reinforced deck system fits a standard and oversized cot side-by-side, with a 50.5” upper deck and a 51.8” bottom deck.

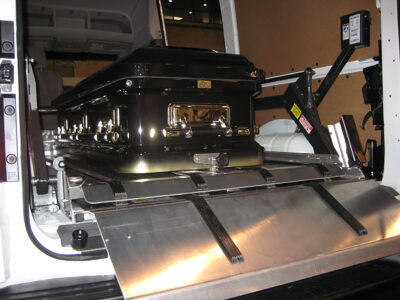

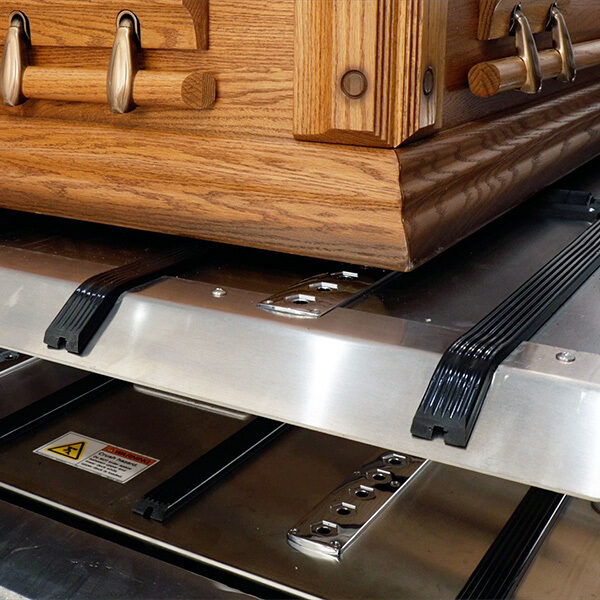

  • Casket on DD2000-XLC's glide strips

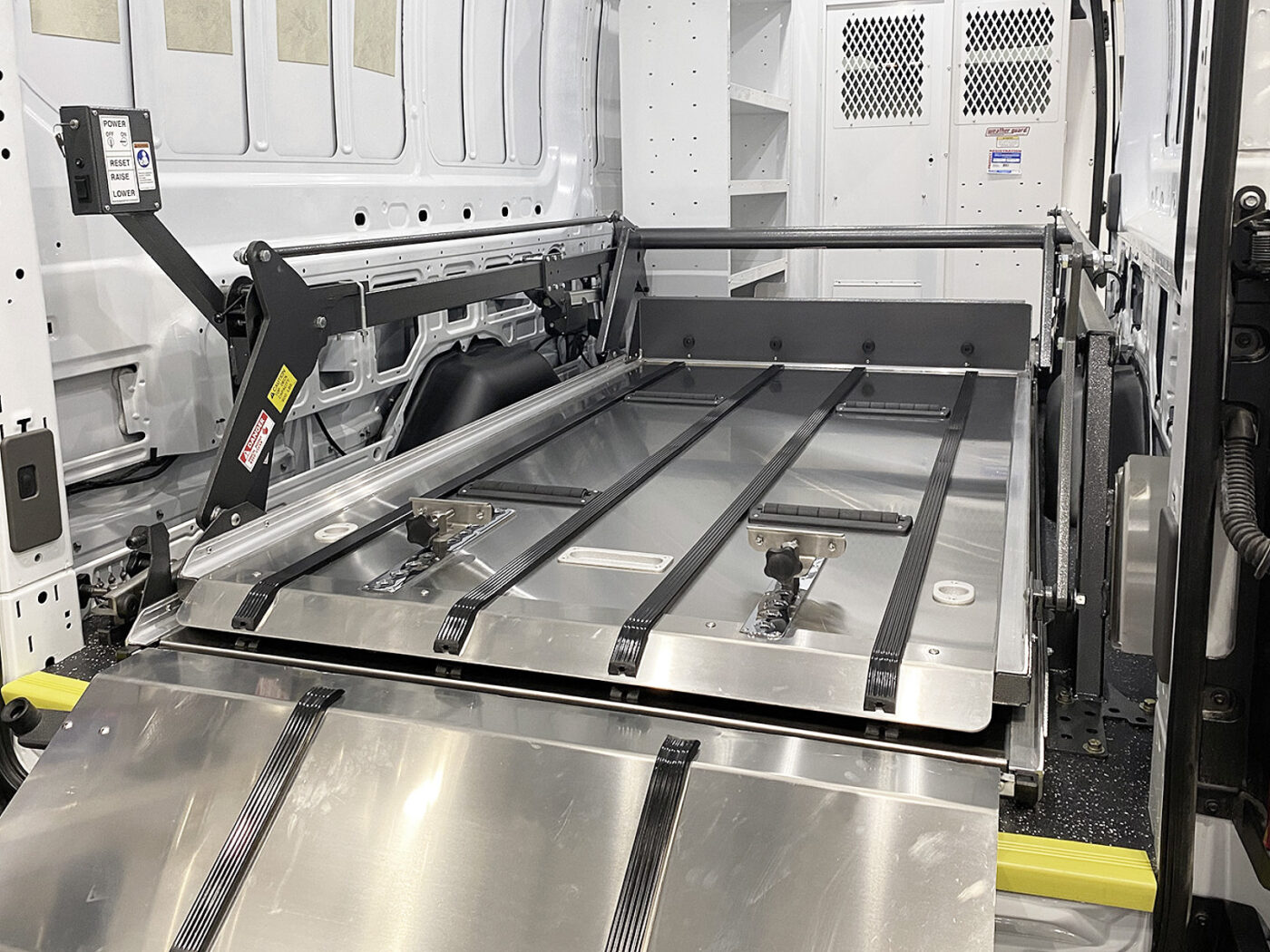

    Durable Deck and Glide Strips

    The aluminum deck with glide strips make loading easier while also protecting the vehicle floor from damage.

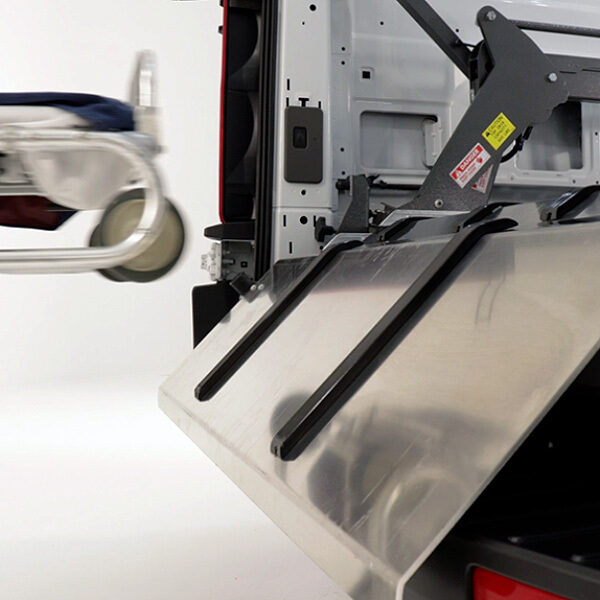

  • A cot about to be loaded using the DD2000-XLC's bumper ramp

    High-Impact Bumper Ramp

    A high-impact, fold-down ramp protects the rear of the vehicle, as well as assisting in loading and unloading mortuary cots and containers.

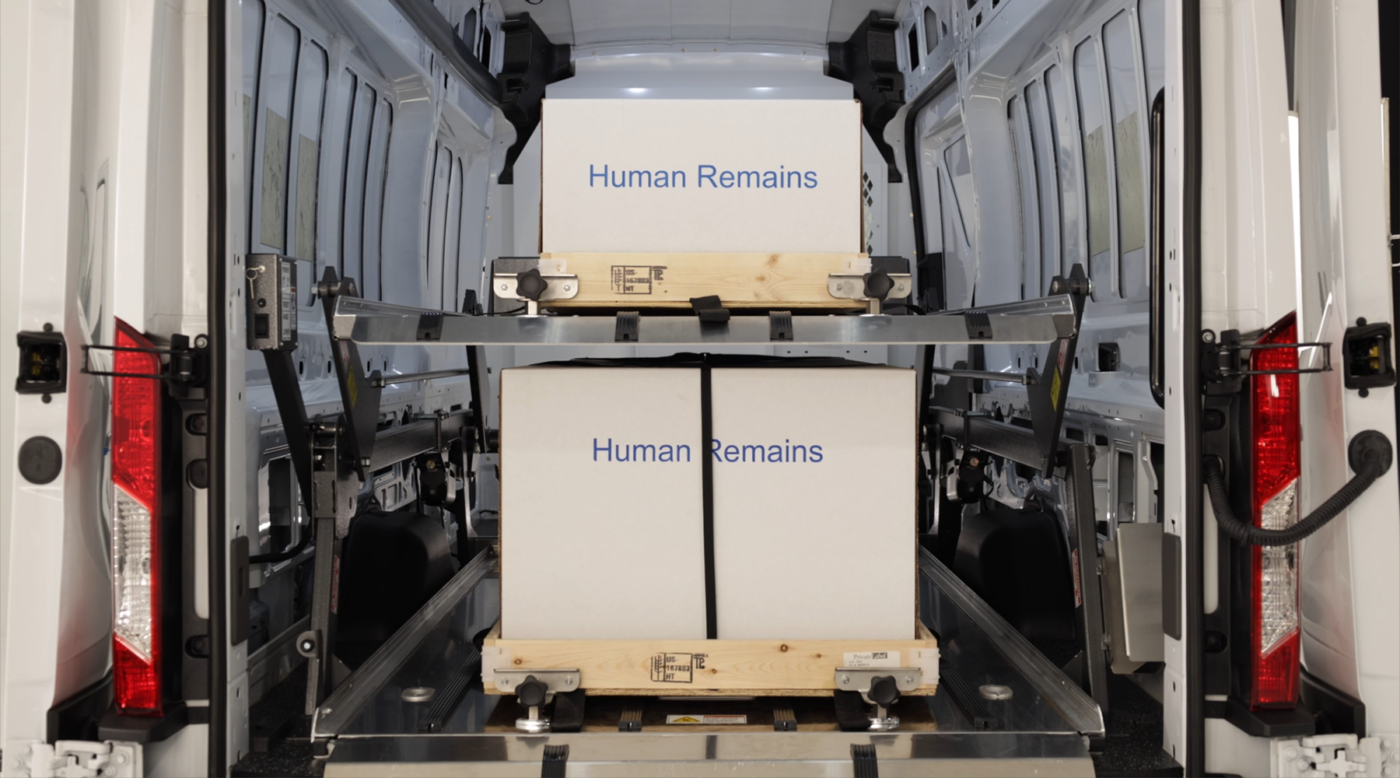

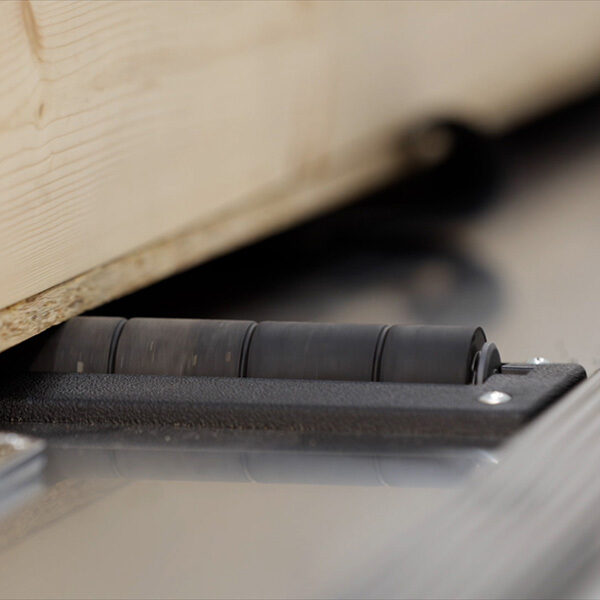

  • Air tray being loaded on the DD2000-XLC using the rollers

    Nylon Casket Rollers

    Each deck of the DD2000-XLC includes four casket rollers to make moving caskets and air trays in and out of a vehicle easier.

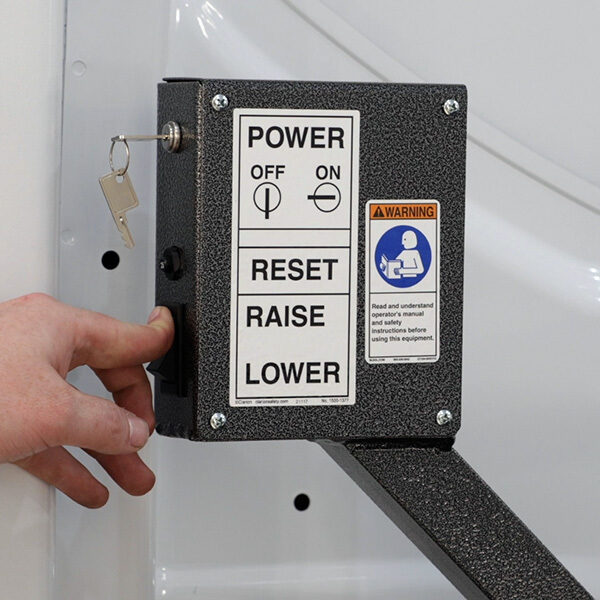

  • Hand pressing the button to raise the upper deck of the DD2000-XLC

    User-Friendly Control Module

    A user-friendly control switch at deck’s entry point allows an operator to raise or lower the upper deck.

  • Cot secured using cot cup recessed in DD2000-XLC's deck

    Recessed Aluminum Cot Cups

    Recessed, solid cast aluminum cot cups help prevent cots from shifting during transport.

  • Bier Pin slotted in bier pin plate on DD2000-XLC deck

    10 Hole Bier Pin Plates

    4 bier pin plates are installed directly on the mortuary deck, with 2 on each deck, ensuring minimal movement when securing containers.

Videos

Specifications

Note: DD2000-XLC fits most full-size cargo vans. The upper deck has a maximum load width of 50.5 inches and a maximum load length of 89.75 inches. Call us today for a full investigation.

Product Codes

Note: Double deck installation requires a van partition bulkhead. Vehicles with rear air conditioning units and/or dual rear-wheel packages will restrict the installation of this product.
Warning: Link products must be professionally installed by a trained technician when being placed into an Electric Vehicle (EV). Electric Vehicles have higher voltage batteries and cables and drilling into Electric Vehicles may cause serious bodily harm and possibly death. Link is not responsible for optional configurations or equipment that restrict the installation of this product in any way. Consult OEM body builder guides for additional installation guidelines.
